Homelite XLBC-4

Leave a comment

We picked this up several years ago. Modern Stihl and Husqvarna equivalents are out of my price range. But for $30 this was a great find. I have the owners manual and parts manual below. The power head is based on the Homelite XL-12, specs below

MANUFACTURED BY:
 HOMELITE CORPORATION
PORT CHESTER, NEW YORK, U.S.A.
YEAR INTRODUCED:
 1964
YEAR DISCONTINUED:
 1988
ENGINE DISPLACEMENT:
 3.3 cu. in. (54.2cc)
NUMBER OF CYLINDERS:
 1
CYLINDER BORE:
 1.75 in. (44.4mm)
PISTON STROKE:
 1.375 in. (34.9mm)
CYLINDER TYPE:
 Aluminum with chrome plated bore
INTAKE METHOD:
 Reed valve
MANUFACTURER ADVERTISED H.P.:
 not advertised
CONSTRUCTION:
 Die cast magnesium
MAGNETO TYPE:
 Wico and Phelon, electronic on later series
CARBURETOR:
 Tillotson HS-4D, 142A, 179D, 195A series
MAJOR REPAIR KIT:
 RK-23HS
MINOR REPAIR KIT:
 DG-5HS/T
AIR FILTER SYSTEM:
 Flocked wire screen
STARTER TYPE:
 Homelite automatic rewind
MAXIMUM ENGINE RPM:
 6,000 under load, free speed 9,500 to 10,500
IDLE RPM:
IGNITION TIMING:
 30 degrees before TDC.
Position stator plate fully clockwise
BREAKER POINT SETTING:
 0.015 in. (0.38mm)
FLYWHEEL/COIL AIR GAP:
 Position is fixed
SPARK PLUG TYPE:
 Champion TJ8J, later Champion RCJ-8J
SPARK PLUG GAP:
 0.025 in. (0.63mm)
CRANKSHAFT MAIN BEARINGS:
 Caged needle roller
FUEL TANK CAPACITY:
 20.9 fl. oz. (595 ml)
FUEL OIL RATIO:
 32:1 with Homelite oil
RECOMMENDED FUEL OCTANE:
 Regular
MIX OIL SPECIFICATION:
 Homelite chain saw mix oil
COLOUR SCHEME:
 Homelite Blue enamel, later Red enamel
Owners Manual:
 Homelite Brushcutter XL Owners Manual
ILLUSTRATED PARTS LIST:
 Homelite XLBC-4 IPL
SERVICE MANUAL:
Chainsaws, Equipment

Stihl 034 AV

1 Comment

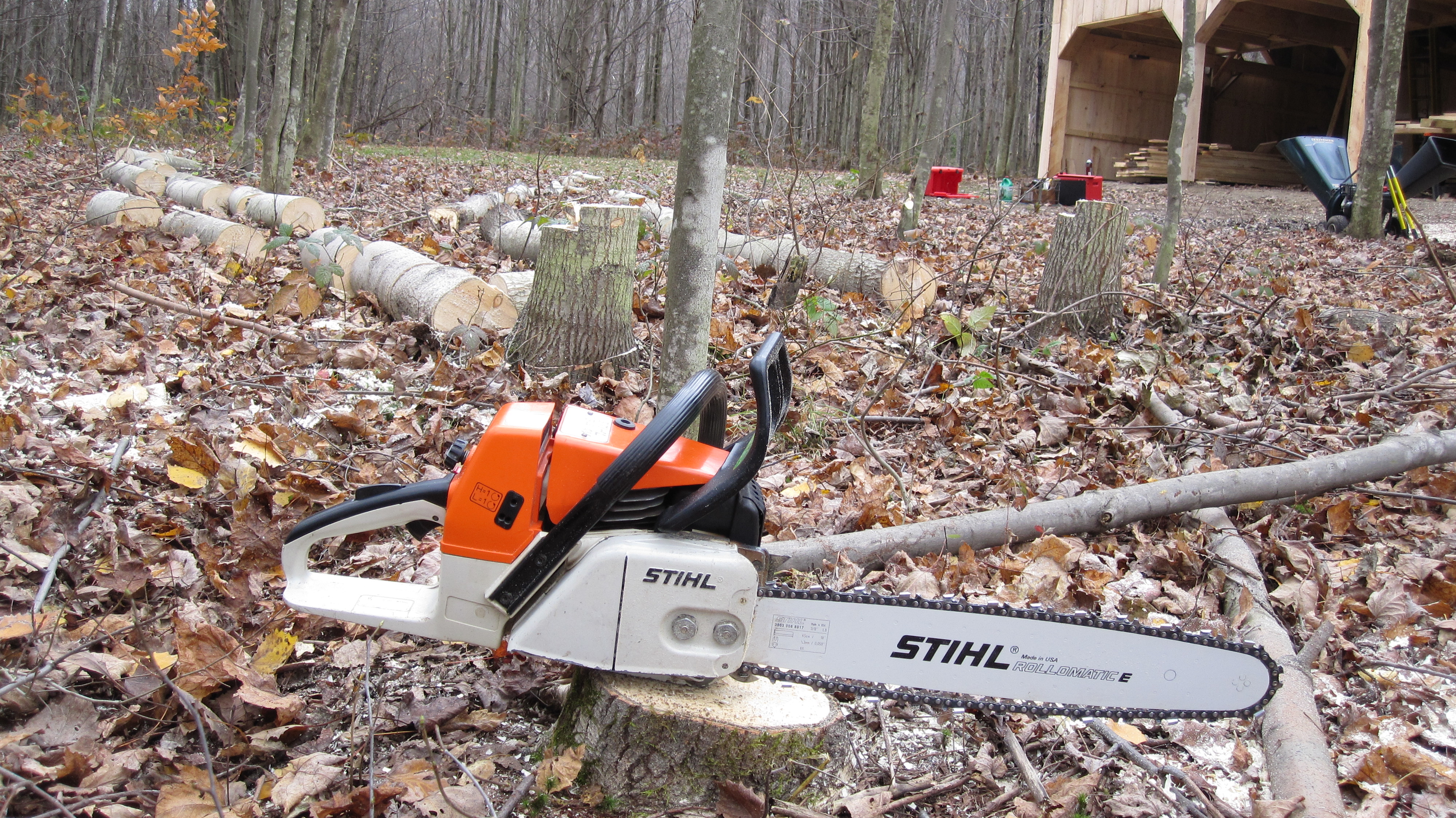

Stihl 034AV in front of some of the trees we cut down today

We picked up this saw over the summer… it was in real nice shape considering it’s age… It needs a little carb tuning…

MANUFACTURED BY:
 STIHL ANDREAS MASCHINENFABRIK
STUTTGART, GERMANY
SERIES OR ASSEMBLY NUMBER:
YEAR INTRODUCED:
 1984
YEAR DISCONTINUED:
ENGINE DISPLACEMENT:
 56.5 ccm (3.45 cu. in.)
NUMBER OF CYLINDERS:
 1
CYLINDER BORE:
 46 mm (1.81 in.)
PISTON STROKE:
 34 mm (1.34 in.)
CYLINDER TYPE:
 Aluminum with chrome plated bore
INTAKE METHOD:
 Piston ported
MANUFACTURER ADVERTISED H.P.:
WEIGHT :
OPERATOR CONFIGURATION:
 One Man operation
HANDLEBAR SYSTEM:
 Anti-vibration
CHAIN BRAKE:
 Optional on Q model
CLUTCH:
 Centrifugal
DRIVE TYPE:
 Direct
CONSTRUCTION:
 Injection molded polymer, die cast magnesium
MAGNETO TYPE:
 Electronic
CARBURETOR:
 Tillotson HK-43A, B series
ZAMA C3A-S19, S31-E, S38-B series
MAJOR REPAIR KIT:
 RK-33HK for HK-43A, B
RB-31 for Zama
MINOR REPAIR KIT:
 DG-1HK for HK-43A, B
GND-21 for Zama
AIR FILTER SYSTEM:
 Nylon mesh cartridge
STARTER TYPE:
 Automatic rewind
OIL PUMP:
 Automatic, gear driven, adjustable
OPERATING RPM:
IGNITION TIMING:
 Fixed
BREAKER POINT SETTING:
 none
FLYWHEEL/COIL AIR GAP:
 0.2 to 0.3 mm (0.008 to 0.012 in.)
SPARK PLUG TYPE:
 Bosch WSRF, NGK BPMR7A, Champion RCJ7Y
SPARK PLUG GAP:
 0.51 mm (0.020 in.)
CRANKSHAFT MAIN BEARINGS:
 Ball
FUEL TANK CAPACITY:
FUEL OIL RATIO:
 50:1 with Stihl oil
RECOMMENDED FUEL OCTANE:
 Regular grade
MIX OIL SPECIFICATION:
 Stihl two-cycle chain saw mix oil
CHAIN PITCH:
 3/8 in.
CHAIN TYPE:
 Stihl
